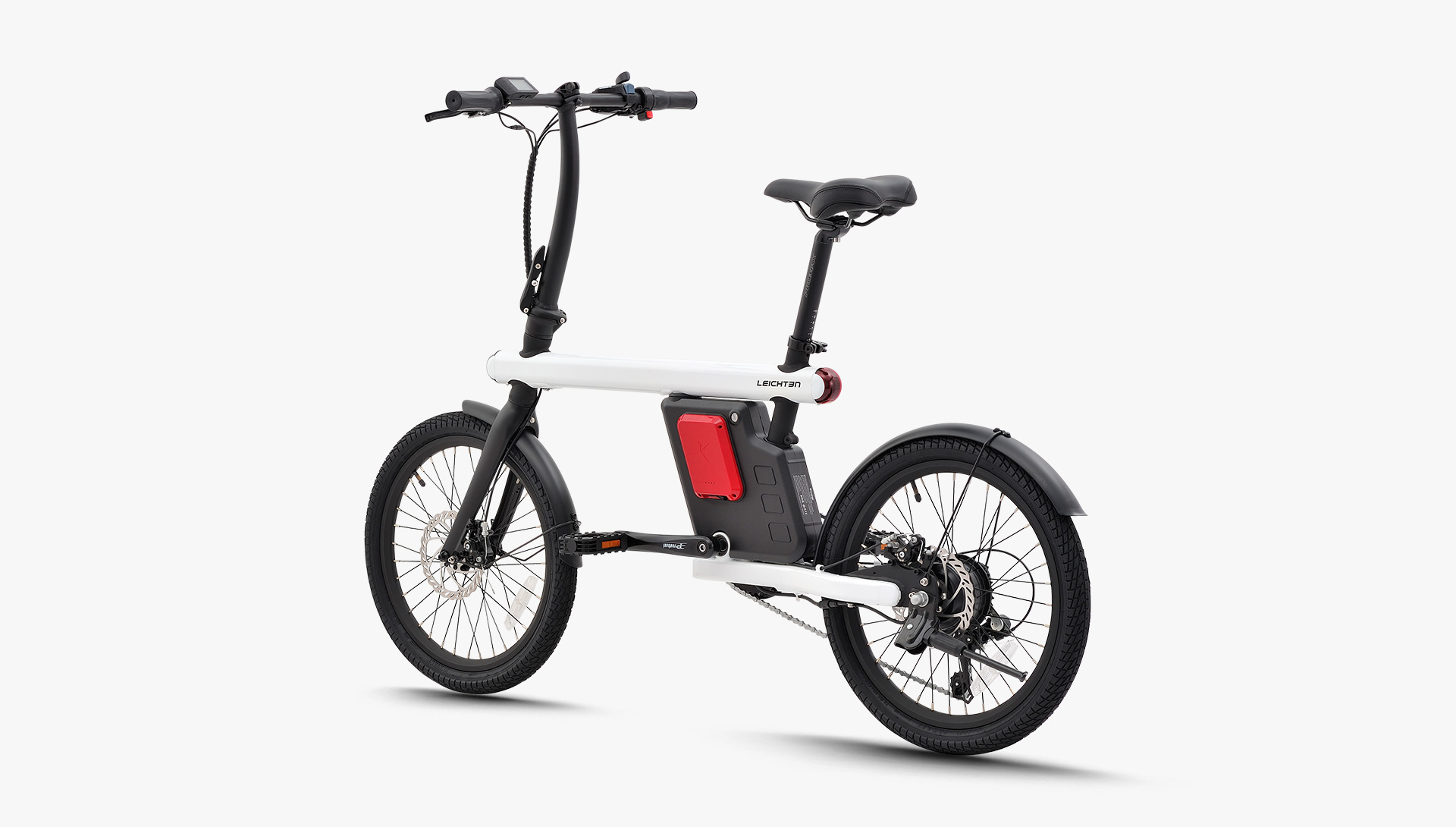

SMART Z1
The Z1,a very special designed for urban residents. The design team worked for 2 years to bring a true unique all new e-bike to the market. Z1 not just take a bike and add a motor drive system. This bike had to be re-designed from the ground us specia.
Bicycle Specification
- Frame size: 20”*360mm
- Color : Matte black / OEM Color
- Material : Al-6061#
- Suspension : Without
- Max speed : 25km/h
- Tire : Front and rear 20*1.95 inch tire
- Brake : Front and rear disc / Mechanical brakes
- Battery : 36V10.5AH / 378WH
- E-System : Bafang H400 RM G310.250.DC
- Ebike Size : 155*62*105CM
- Packing size : 135*26*68CM
- W.W / G.W : 26.8KG/ 32.8KG
- Battery : FRZ1
- MAX Cells : 30PCS
- MAX capacity : 36V10.5Ah
- Charging Port : Dell
- USB port : With
- Motor : Bafang H400- RM G310.250.DC
- Display : APT-500S/ Optional
- Front Light : Optional
- Rear Light : Optional
- Brake : TEKTRO CL520
- Battery charger : 36V2A
- Front Hub : Quick Release*100mm 2bearings
- Rear Hub : Motor
- Fork : Al-6061#
- Rear Suspension : Without
- Tire : 20”*1.95” KENDA
- Mudguards : Aluminum alloy
- Shifting Lever : SL-M310 7speed
- Rear Derailleur : RD-FT35
- Cassette Sprocket : MF-TZ21, 14-28T 7speed
- Chain : KMC
- Sprocket crank : Aluminum alloy 44T
- Saddle : SR
- Seat post : KS φ31.8mm*300mm
- storage rack : Optional
