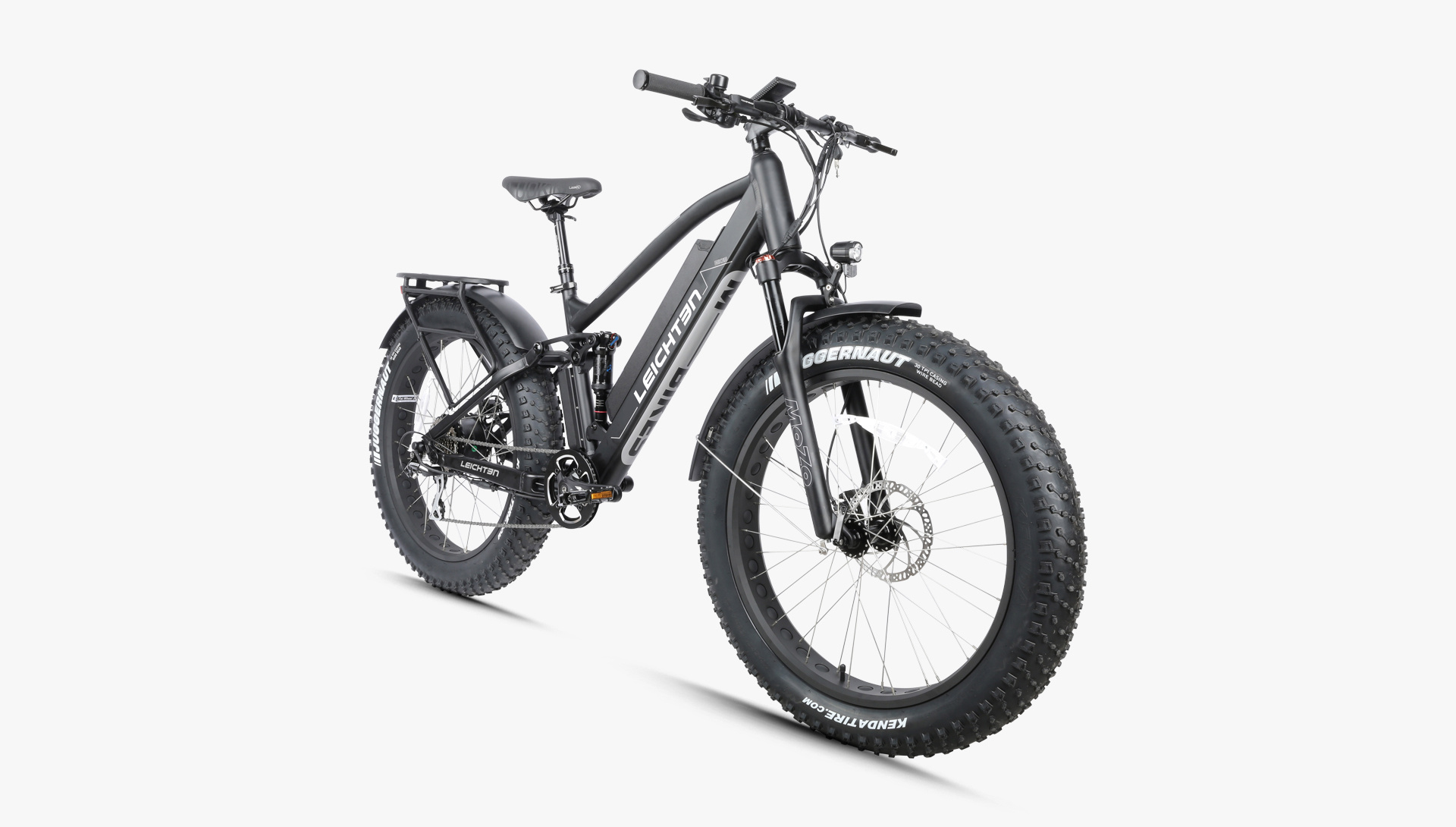

LT-TR03-FAT
LT-TR03-FAT has an excellent frame, The BAFANG rear-drive motor H500F, with a top speed of 32km/h, got a powerful cycling experience.
Bicycle Specification
- Frame size : 26”*17”/ 26”*18”/ 26“*19”
- Color : Matte black / OEM Color
- Material : Al-6061#
- Suspension : Front and rear
- Max speed : 45km/h
- Tire : Front and rear 26*4.0 inch tire
- Brake : Front and rear disc / hydraulic brake
- Battery : 48V16AH / 768WH
- E-System : Bafang H500F Rear-Motor (750W)
- Ebike Size : 200*72*120CM
- Packing size : 160*28*88CM
- N.W / G.W : 36.5KG/ 42.5KG
- Battery : ID-PLUS (REENTION)
- MAX Cells : 65PCS
- MAX capacity : 36V21Ah /48V21Ah
- Charging Port : DC2.1 Oot. 3Pin high current
- USB port : available
- Motor : Bafang H500F-RM G06.750.DC 48V750W
- Display : APT-850C
- Front Light : BUCHEL/Shiny50
- Rear Light : StVZO (K-1667)
- Brake : TEKTRO HD-E350
- Battery charger : 48V3A
- Front Hub : ￠15mm*135mm 2bearings
- Rear Hub : 8FUN Motor*189mm
- Fork : MOZO FATMAN-AIR Travel 80mm
- Rear Suspension : Rockshox Deluxe 185*55mm
- Tire : 26”*4.0” KENDA
- Mudguards : Aluminum alloy / Optional
- Shifting Lever : SL-M4000, ALIVIO, 9speed
- Rear Derailleur : RD-M4000-SGS, ALIVIO
- Cassette Sprocket : CS-HG400-9, 11-34T 9speed
- Chain : KMC
- Sprocket crank : Aluminum alloy 38T
- Saddle : SR Lookin Basic-A229UR
- Seat post : KS Speed Up
- storage rack : Optional
