MOUNTAINTOP
Carbon Frame hydraulic Disc 12-speed Gravel Bike
Bicycle Specification
- Entry Level: SRAM-AEPX
- Fork: Carbon fiber gravel fork
- Seatpost: Carbon fiber
- Handlebar set:: breaking wind bent bar
- Rim: Aluminum
- Saddle: SelleRoyal 2101H
- Derailleur set: SRAM-AEPX-1×12 Spd
- Shifter: SD APX / DB APX
- Dearailler: RD APEX XPLR
- Cassette: CS PG 1231 D1 XPLR 11-44
- Brake: DB ROTOR CLX CENTERLOCK 160
- Chainwheel: FC APEX 1 D1 DUB WIDE 1725 44 AL
- BBP: BB DUB PF 86.5 ROAD WIDE
- Medium configuration: SRAM-AEPX eTAP
- Fork : Carbon fiber gravel fork
- Seatpost: Carbon fiber
- Handlebar set: breaking wind bent bar
- Rim: Aluminum
- Saddle: SelleRoyal 2101H
- Derailleur set: SRAM-AEPX-1×12
- Shifter: ED APX AXS
- Derailleur: RD APEX XPLR AXS D1 MAX 44T
- Cassette: CS PG 1231 D1 XPLR 11-44
- Brake: DB ROTOR CLX CENTERLOCK 160
- Chainwheel: FC APEX 1 D1 DUB WIDE 1725 42 AL
- BBP: BB DUB PF 86.5 ROAD WIDE
- Battery/Charger: EP POWERPACK 1 BATTERY

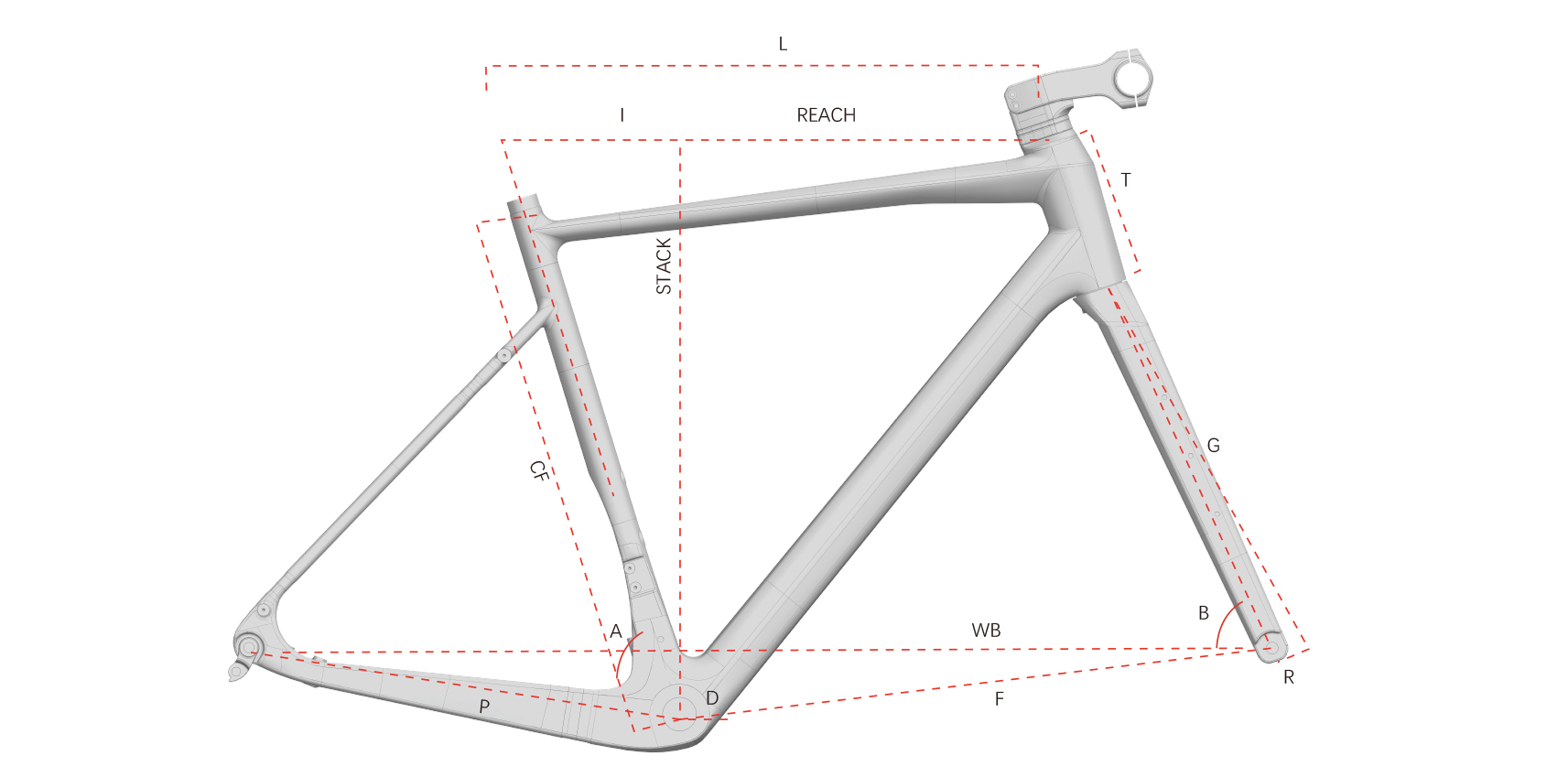

FRAME GEOMETRY
SIZE
CF
L
I
A
B
F
P
T
D
R
G
STACK
REACH
WB
S
430
505
145.7
74.5°
70°
583.2
435
110
67
50
395
525.2
359.3
1009.5
M
490
525
155.2
74°
70.5°
594.5
435
125
67
50
395
541.3
369.8
1020.6
L
520
535
165.1
73.5°
71°
595.4
435
140
67
50
395
557.5
369.8
1021.4
