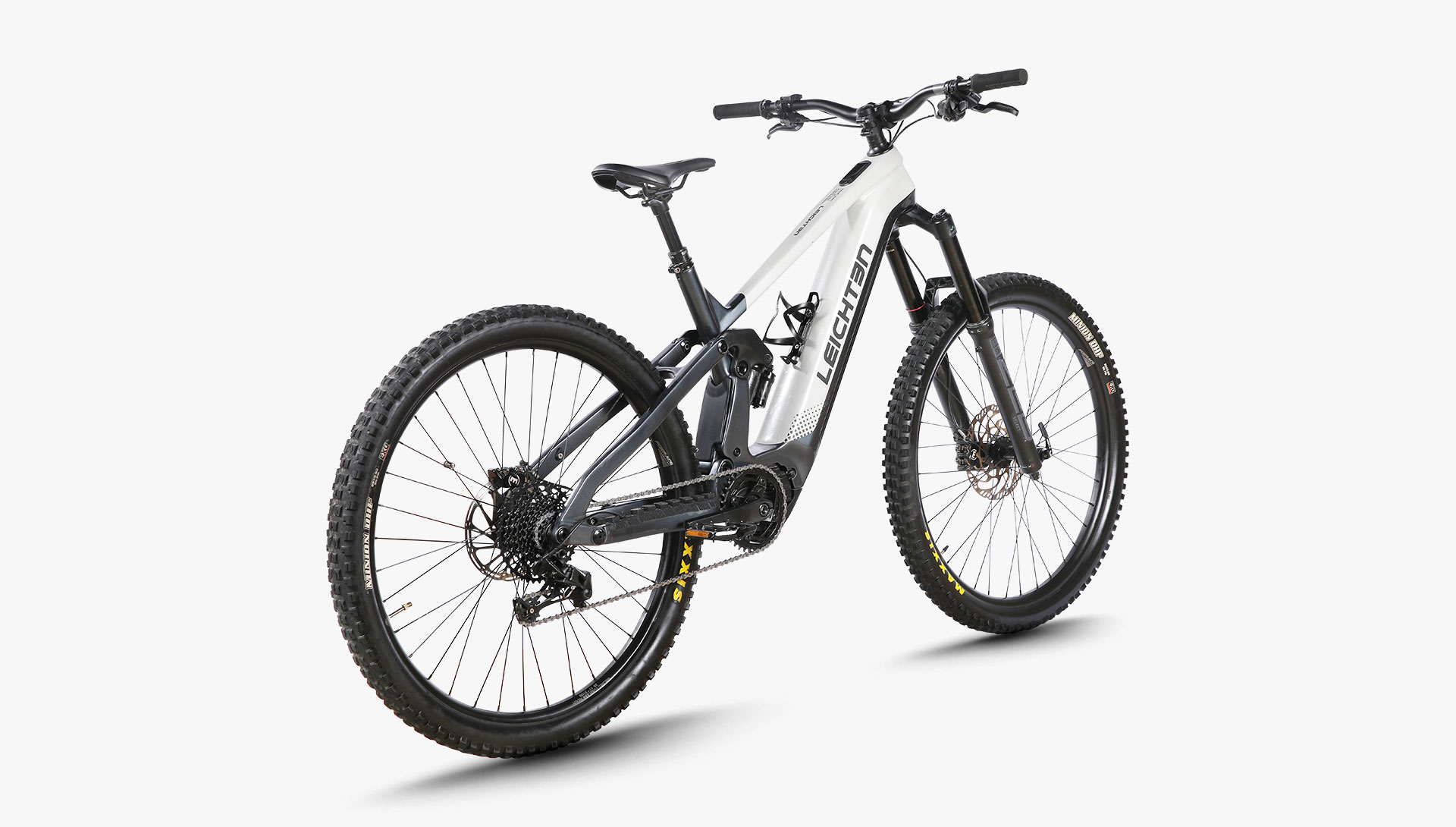

LT-TR06 Carbon
LT-TR06 Carbon with Carbon frame and hidden battery. Bike with Light weight and perfect performance.
Bicycle Specification
- Frame size : 29*17/ 29*18/ 29*19
- Color : OEM Color
- Material : Carbon fiber
- Suspension : Front and rear Rockshox
- Max speed : 32km/h
- Tire : 29*2.4
- Brake : Disc / Hydraulic brake
- Battery : 48V15AH/720WH
- E-System : Bafang M600 Mid.Motor (500W)
- Ebike Size : 195*72*110CM
- Packing size : 160*26*80CM
- N.W/G.W : 26.8KG/31.8KG
- Battery : Youth
- MAX Cells : 52PCS
- MAXcapacity : 48V15Ah
- Charging Port : DC2.1
- USB port : available
- Motor : Bafang M600 Mid.Motor (500W)
- Display : DP.C18.CAN
- Front Light : BUCHEL/Shiny50
- Rear Light : StVZO (K-1667)
- Brake : Hydraulic Disc-brake,MAGURA MT5
- Battery charger: 48V3
- Front Hub : c15mm*10mm 2bearings
- Rear Hub : c12mm*148mm 4bearings
- Fork : ZEB -180MM , SRAM
- Rear Suspension : Rockshox Deluxe 185*55mm
- Tire : 29*2.4
- Mudguards : PP as Optional
- Derailleur : GX Eagle Transmission 12SPD SRAM
- Cassette Sprocket : 12 spd
- Chain : CN-TTYP-GX-A1 126 LINK , SRAM
- Sprocket crank : Aluminum alloy 48T
- Saddle : FIZI:K , SR
- Seat post : KSP900-i , KS
- storage rack : Optional
FRAME GEOMETRY
SIZE
CF
L
I
A
B
F
P
T
D
R
G
STACK
REACH
WB
S
406
590
161.5
75°
66°
748
455
115
15
51
571
614.4
433.2
1109
M
457
601.6
170
75°
66°
772.7
455
125
15
51
571
625.5
440.6
1227.5
L
508
630
170.6
75°
66°
790.4
455
135
15
51
571
632.7
462.5
1247
