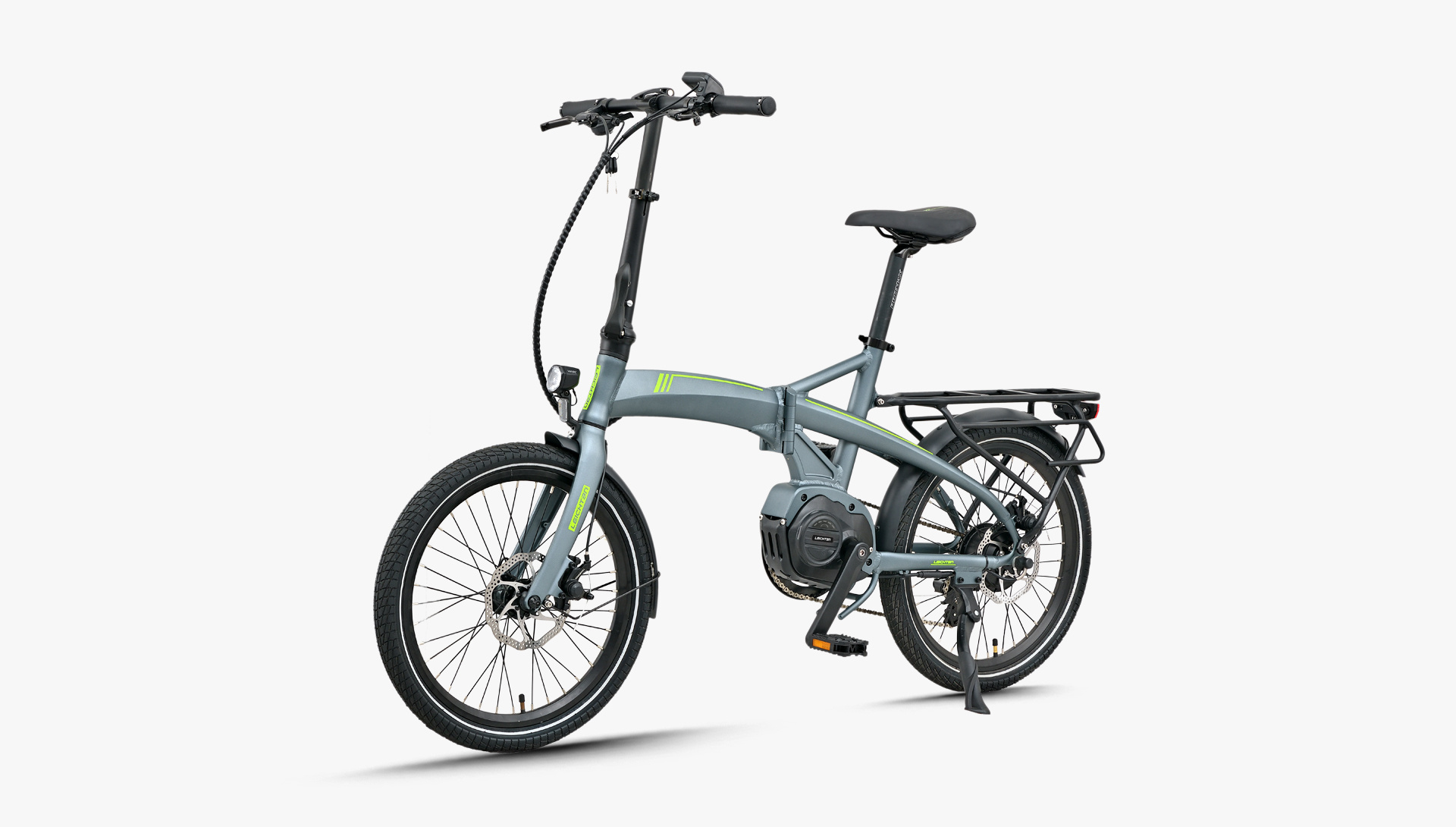

LT-FM01
LT-FM01 is a folding e-bike for men. It has a lightweight and foldable frame which help riders to carry easily. Its motor is 250W and max speed could reach to 25km/h, suitable for European standard.
Bicycle Specification
- Frame size: 20”*370mm
- Color: Matte YS7779 / OEM Color
- Material: Al-6061#
- Suspension: Without
- Max speed: 25km/h
- Tire: Front and rear 20*1.95 inch tire
- Brake: Front and rear disc / Mechanical brakes
- Battery: 36V10.5AH / 378WH
- E-System: Bafang H400 RM G310.250.DC
- Ebike Size: 155*62*105CM
- Packing size: 135*26*68CM
- W / G.W: 26.8KG/ 32.8KG
- MAX Cells: 30PCS
- MAX capacity: 36V10.5Ah
- Charging Port: 3Pin
- USB port : With
- Motor: Bafang H400- RM G310.250.DC
- Display: APT-500c / LD-W780 Optional
- Front Light: Optional
- Rear Light: Optional
- Brake : TEKTRO CL520
- Battery charger : 36V2A
- Front Hub: Quick Release*100mm 2bearings
- Rear Hub: Motor
- Fork : Al-6061#
- Rear Suspension: Without
- Tire : 20”*1.95” KENDA
- Mudguards: Aluminum alloy
- Shifting Lever : SL-M310 7speed
- Rear Derailleur : RD-FT35
- Cassette Sprocket: MF-TZ21, 14-28T 7speed
- Chain: KMC
- Sprocket crank : Aluminum alloy 44T
- Saddle : SR
- Seat post : KS φ31.8mm*300mm
- storage rack : Optional
