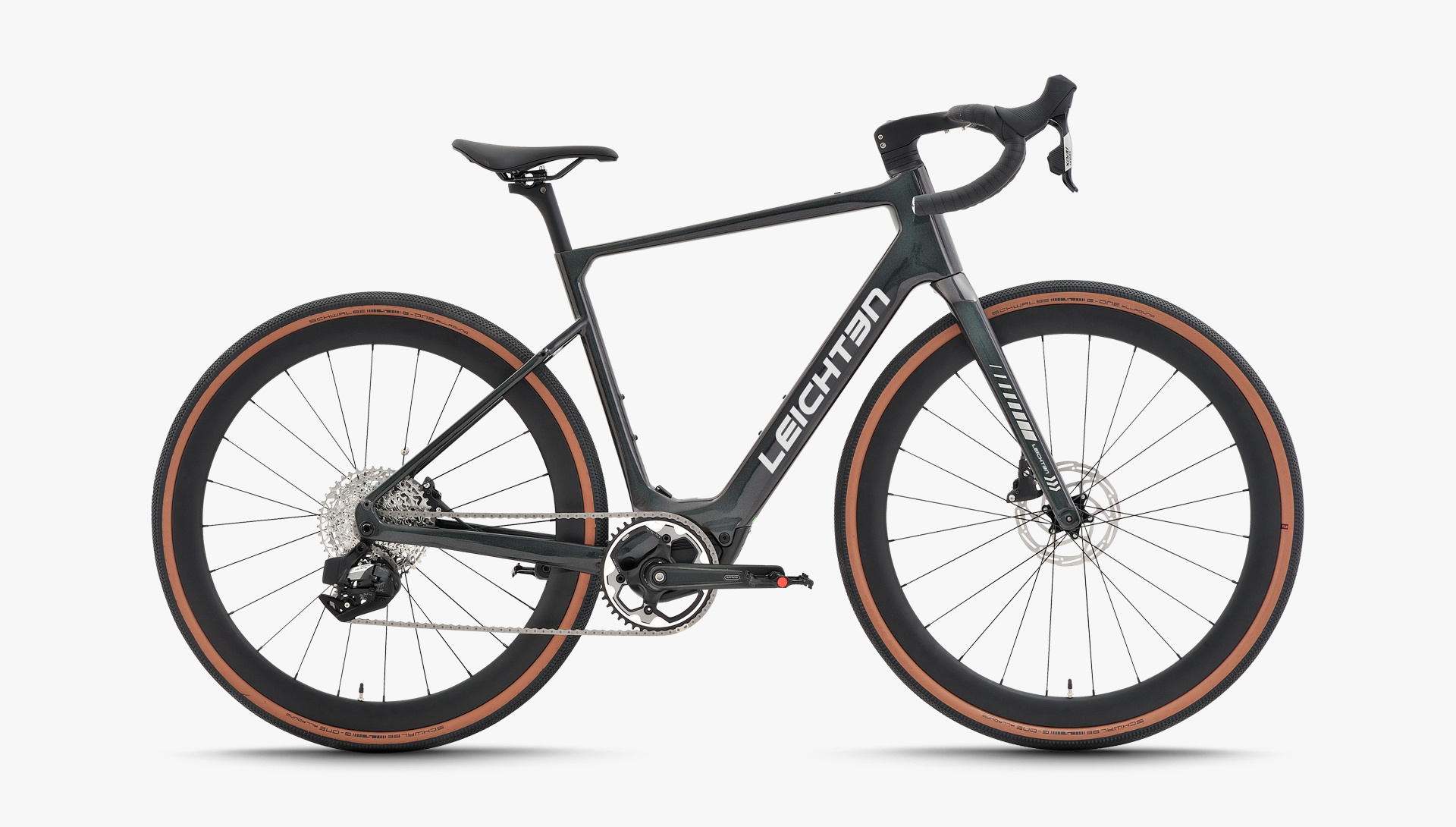

LT-GR01-M820
LT-GR01-M820 with simple design carbon frame. Hidden battery and small motor. Light weight by carbon fiber frame,fork and rim.
Bicycle Specification
- Frame size: 28*17/ 28*18/ 28*19str_replace
- Color : OEM Color
- Material : Carbon fiber
- Suspension: Front as options
- Max speed : 25km/h
- Tire: Front and rear 700C*40C
- Brake: Disc / hydraulic brake
- Battery: 36V9.5AH/342WH
- E-System: Bafang M820 Mid.Motor (250W)
- Ebike Size: 187*68*110CM
- Packing size: 148*26*80CM
- N.W/G.W : 23.8KG/28.8KG
- Battery : Hidden in frame and removable
- MAX Cells: 30PCS
- MAXcapacity: 36V10.5ah
- Charging Port : DC2.1
- USB port : available
- Motor : Bafang M820,250w
- Display : DP E165.CAN
- Front Light : LED
- Rear Light: LED
- Brake : Hydraulic Disc-brake,SRAM
- Battery charger: 36V2A
- Front Hub: c15mm*10mm 2bearings
- Rear Hub: c12mm*148mm 4bearings
- Fork : Carbon fiber
- Rear Suspension : N/A
- Tire : 700*40C
- Mudguards: N/A
- Shifting Lever : RD-APEX-1E-D1 SRAM electronic 12S
- Rear Derailleur: SRAM 12speed
- Cassette: SRAM 12speed
- Chain: KMC
- Sprocket crank : Aluminum alloy 44T
- Saddle : 2101H Soft comfortable,SR
- Seat post : Carbon fiber
- Storage rack : Optional
FRAME GEOMETRY
SIZE
CF
L
I
A
B
F
P
T
D
R
G
STACK
REACH
WB
S
470
527.1
157.1
74°
70.5°
603
435
147.8
75
50
395
570
370
1026.9
M
500
548.4
168.4
73.5°
71°
614.8
435
166.9
75
50
395
590
380
1038.7
L
530
568.1
180.1
73°
71.5°
624.3
435
185.9
75
50
395
610
388
1048.2
