LT-TR06-M230
LT-TR06-M230 with Leichten 3rd-generation full suspension frame design. Relax and enjoy the ride.
Bicycle Specification
- Frame size : 29*16/ 29*18/ 29*19
- Color : OEM Color
- Material : Al.6061#
- Suspension : Front and rear
- Max speed : 35km/h
- Tire : Front and rear 29*2.5 inch tire
- Brake : Disc / hydraulic brake
- Battery : 48V15AH/720WH
- E-System : Ananda M230 Mid.Motor (350W)
- Ebike Size: 192*68*110CM
- Packing size : 160*26*80CM
- N.W/G.W : 27.8KG/33.8KG
- Battery : Youth
- MAX Cells: 52PCS
- MAXcapacity: 48V15Ah
- Charging Port : DC2.1
- USB port : available
- Motor : Ananda M230 Mid.Motor (350W)
- Display : Color screen,LCD D16 Ananda
- Front Light : BUCHEL/Shiny50
- Rear Light : StVZO
- Brake : Tektro HD-M535
- Battery charger : 48V3 fast charger
- Front Hub : c15mm*10mm 2bearings
- Rear Hub : c12mm*148mm 4bearings
- Fork : Solo Air,adjustment to locked, Bluto Rockshox 160MM
- Rear Suspension : Air-hydraulic adjustment,Rockshox Deluxe
- Tire : 29*2.5
- Mudguards : PP as optional
- shifting Lever : RD NX 1X11SPD SRAM
- Rear Derailleur : RD NX 1X11SPD SRAM
- Cassette Sprocket : 11speed
- Chain : KMC
- Sprocket crank : Aluminum alloy 34T
- Saddle : SINK GEL Soft comfortable,SR
- Seat post : Alloy aluminum,KS Wire control
- storage rack : Optional

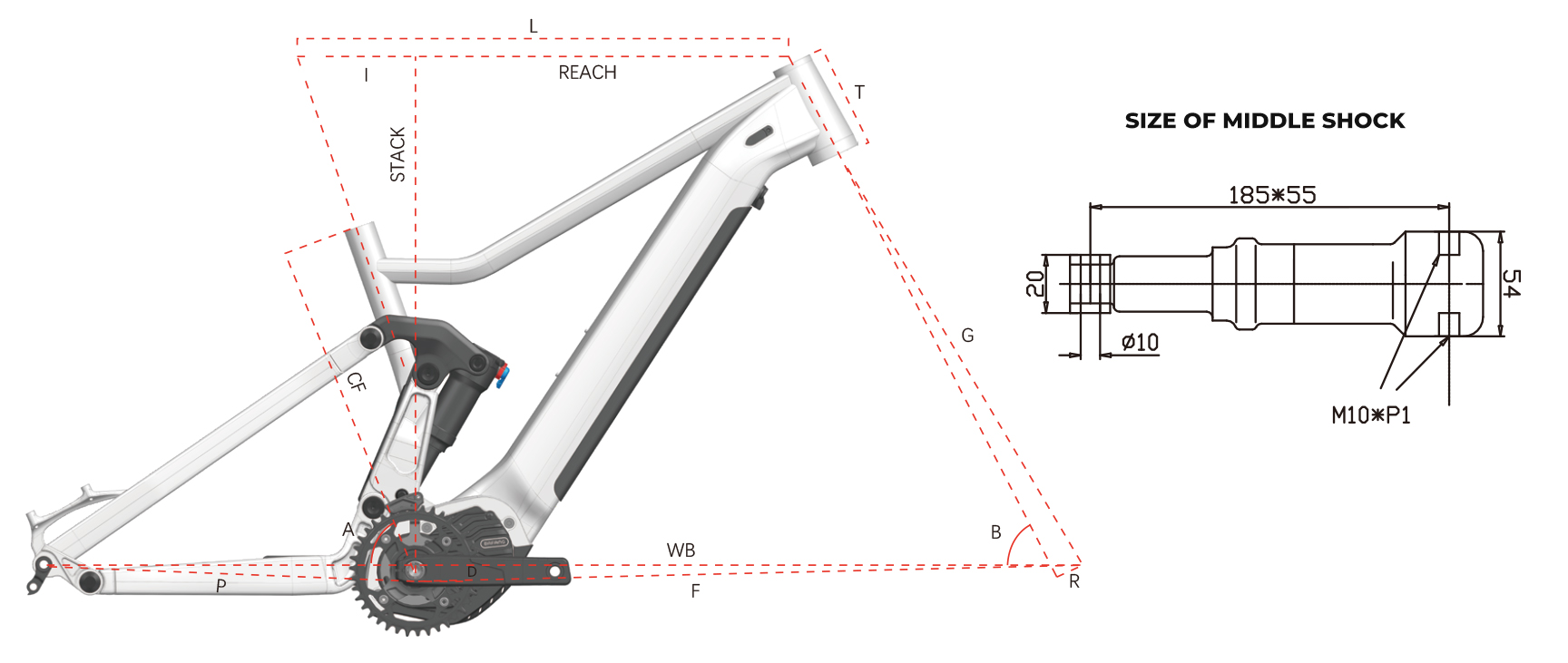

FRAME GEOMETRY
SIZE
CF
L
I
A
B
F
P
T
D
R
G
STACK
REACH
WB
S
M
426
594.8
145.9
76.5°
64.5°
796
470
125
7.5
51
571
617.5
448.8
1265.8
L
